Customer input
Drawings, photos, samples, specifications, machine details, quantity, and urgency.
Engineering capabilities
Engineering support for chains, sprockets and custom transmission projects
JXChain supports replacement, OEM and application-specific projects through technical review, chain-sprocket matching, manufacturing assessment and custom component development.
Drawing reviewSample identificationChain-sprocket matching

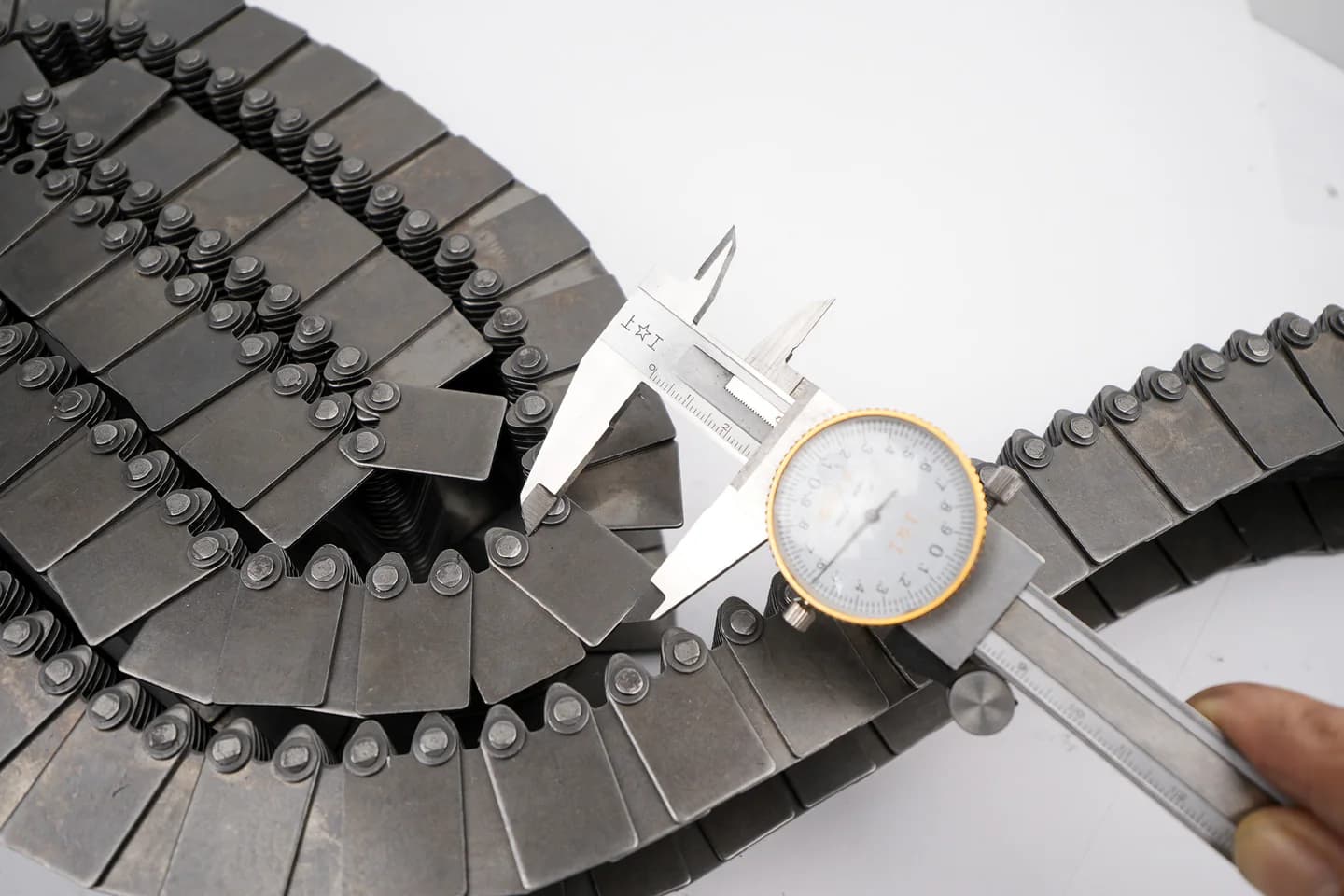

Dimensional inspection for chain identification
Three review paths
Choose the engineering path for your project
Each path shows what to provide, what is reviewed, and what the customer receives before quotation.
01
Chain Manufacturing
Confirm manufacturing feasibility from drawings, samples, replacement needs, and OEM requirements.
- Provide
- Drawing, sample, chain dimensions, machine context
- Review
- Manufacturability, structure, material route, missing data
- Outcome
- Feasibility response and quotation-ready scope
02
Sprocket Production
Validate chain-sprocket compatibility, machining precision, tooth geometry, and system-level performance.
- Provide
- Chain data, tooth count, bore, keyway, hub, drawing
- Review
- Chain engagement, geometry, machining feasibility
- Outcome
- Compatibility response and confirmed dimensions
03
Custom Solutions
Route design collaboration and sample replication into structured technical inputs for quotation.
- Provide
- Drawing, sketch, physical sample, application conditions
- Review
- Requirement definition, replication or collaboration path
- Outcome
- Clarified scope and next validation step
Review workflow
From technical input to a quotation-ready scope
Production begins only after technical and commercial scope is confirmed. An RFQ submission does not automatically approve a design or start manufacturing.
02
Engineering review
The request is routed to the correct product and feasibility path.
03
Feasibility / compatibility
Manufacturability, chain-sprocket interaction, and missing information are evaluated.
04
Scope confirmation
Questions and assumptions are documented before commercial pricing.
05
Quotation
A quotation is prepared against the confirmed technical and commercial scope.

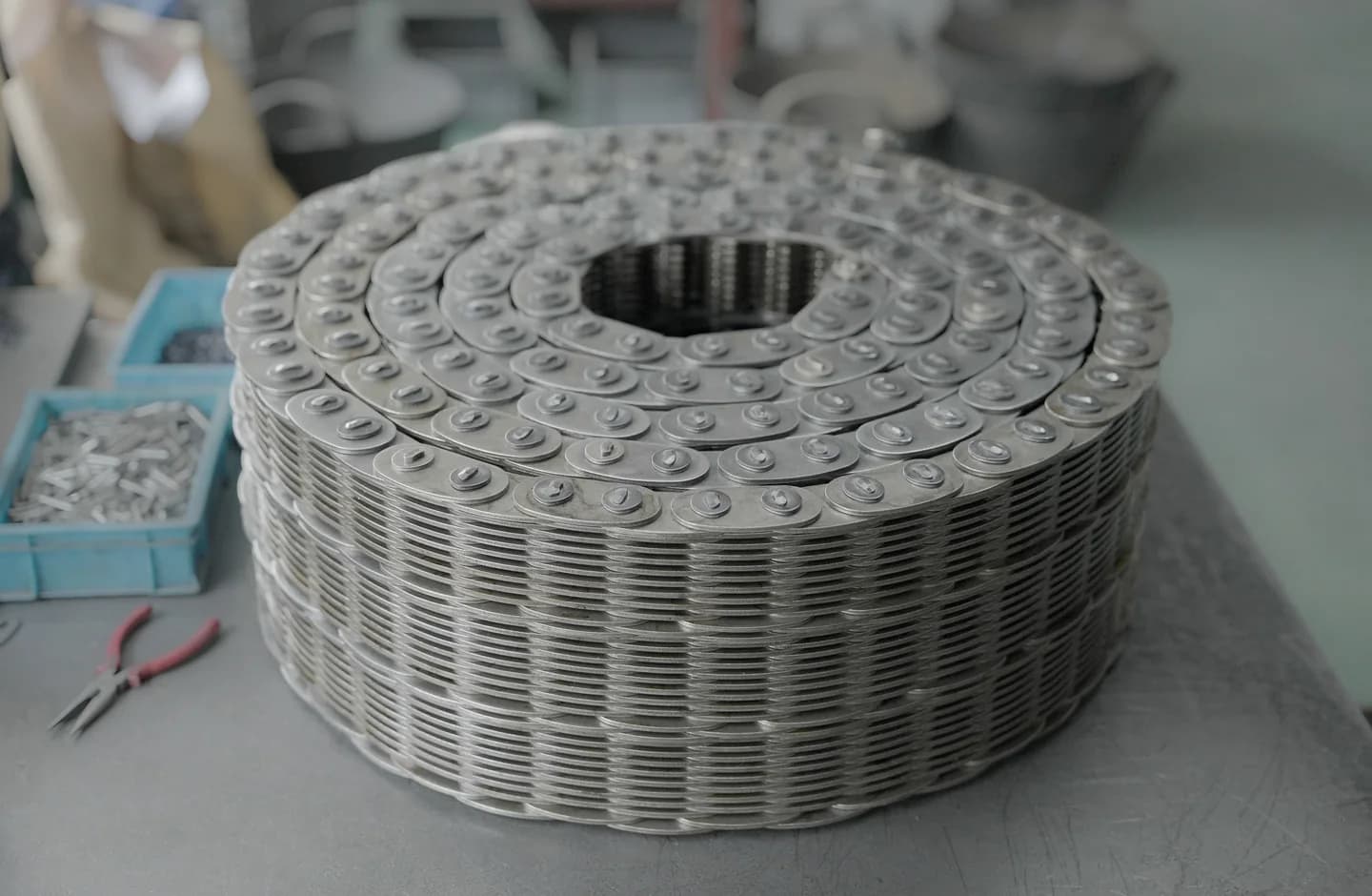

Finished chain assembly prepared on the workshop table
Project modes
Urgent replacement and repeat supply require different review priorities
Both paths use structured technical evidence, but their priorities and commercial inputs are different.
Urgent replacement
Identify the existing component quickly.
Prioritize photos, markings, dimensions, machine model, sample availability, quantity, and delivery need.
OEM / batch supply
Validate the specification before repeat production.
Prioritize drawings, operating conditions, compatibility, sample approval route, quantity, and future demand.
RFQ readiness
Better technical inputs reduce clarification before quotation.
Send what is available. Engineering will identify the missing information instead of requiring a perfect specification at the first contact.
Component
Photos, drawing, sample, dimensions, markings
Machine
Model, layout, mating parts, installation context
Operation
Speed, load, duty cycle, environment, failure symptoms
Commercial
Replacement or OEM, quantity, urgency, delivery target
Start an engineering review
Have drawings, samples or a chain–sprocket compatibility question?
Send the information you already have. We will route your enquiry to the appropriate product and engineering review path before quotation.
Drawing / photos / sampleMachine and applicationOperating conditionsQuantity and urgency
