Chain data
- Family and model
- Pitch and width
- Drawing or sample
- Current engagement or wear condition
Engineering review
Sprocket Compatibility & Manufacturing Review
Assess whether a replacement or custom sprocket can be manufactured to match the chain family, tooth form, shaft connection, mounting geometry and operating duty.
Chain-led matchingTooth geometryBore / keyway / hubSystem compatibility

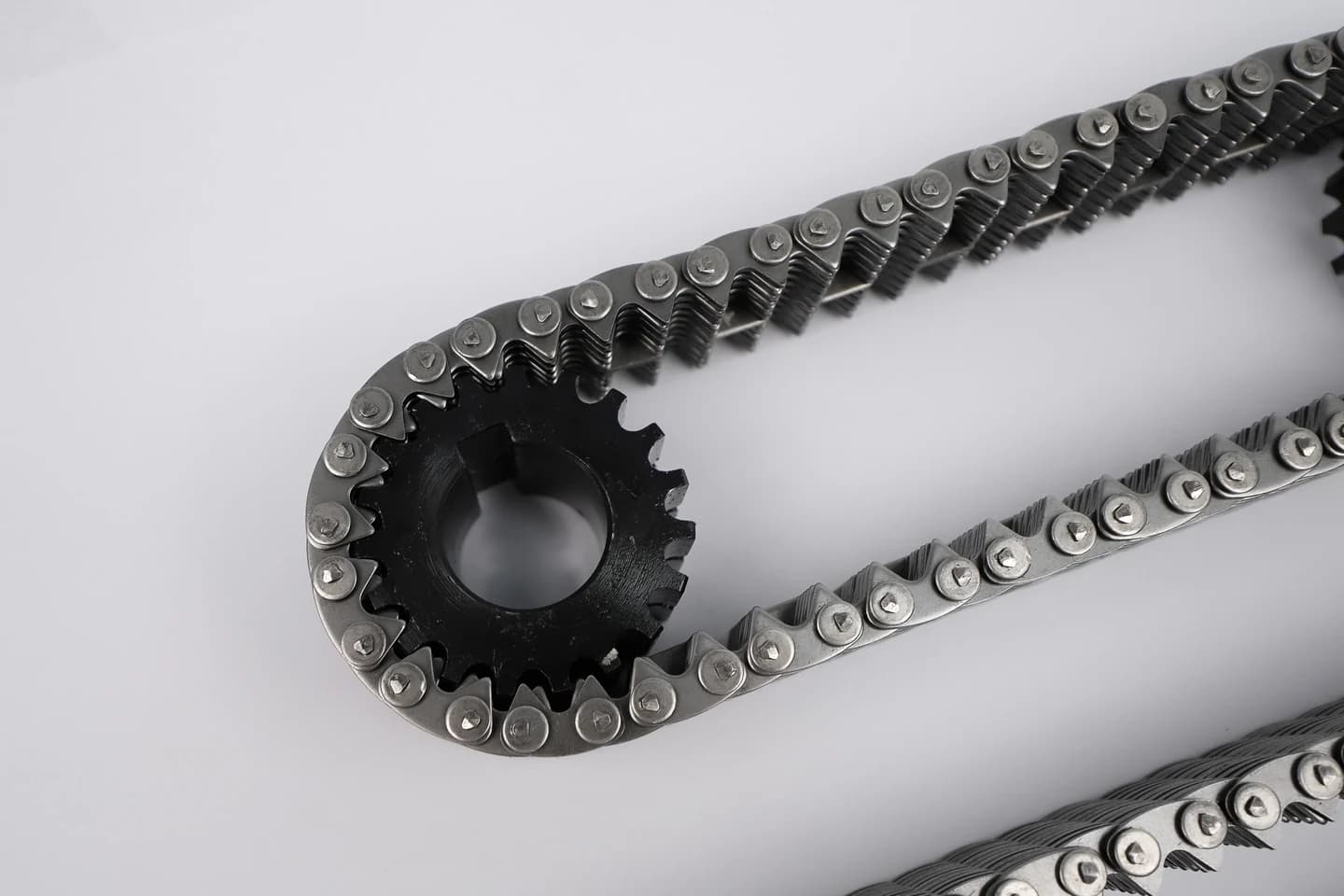

Chain wrapped around an existing sprocket
When to use this review
Start with what you know, not a complete sprocket specification
These are the most common conditions that should enter this engineering path.
01
An existing sprocket needs replacement but its drawing is missing.
02
A physical sprocket sample is available with visible wear.
03
The chain is known and a correctly matched sprocket is required.
04
A chain and sprocket set must be evaluated together.
05
Shaft and machine data exist, but component geometry is incomplete.
06
An OEM project needs repeatable sprocket production.
Evidence routes
Start with the sprocket, chain or machine.
A compatibility review needs both mating-component information and mounting context.
01
Existing drawing
Review documented tooth, body, and mounting geometry.
- Sprocket drawing
- Chain reference
- Material and process notes
02
Sprocket sample
Capture geometry and identify wear before replication.
- Physical sample and photos
- Tooth count
- Chain sample or specification
03
Chain-led matching
Use the known chain to define the mating sprocket review.
- Chain family and model
- Pitch and width
- Drawing, photos, or sample
04
Application-led review
Use machine and shaft conditions to identify missing geometry.
- Shaft and layout
- Speed and load
- Environment and duty cycle
Engineering review
Sprocket compatibility depends on the complete drive system
Tooth geometry alone is not enough. Engineering reviews the chain interface, mounting geometry, and operating system together.
02
Sprocket geometry
- Tooth count and geometry
- Face width
- Body style
- Reference dimensions
- Single or special configuration
03
Mounting and system
- Bore, keyway, and hub
- Shaft and mounting method
- Speed and load
- Alignment and layout
- Environment and quantity
Chain and sprocket interface prepared for review
Review output
What the sprocket review clarifies before quotation
The initial review does not promise production. It makes the next decision, remaining uncertainty, and quotation boundary visible.
01
Initial chain-sprocket compatibility response
02
Missing chain, tooth, or mounting information
03
Dimensions requiring customer confirmation
04
Drawing, sample, or matched-system recommendation
05
Manufacturing-feasibility response
06
Sprocket-only or matched-set quotation scope
Start your review
Start a sprocket review
Submit the information you have. We will confirm chain–sprocket compatibility, identify mounting requirements and define the appropriate quotation scope.
Chain specification / sampleTooth count and geometryBore / keyway / hubDrawing or photographs
