Product family

Silent Chains / Inverted Tooth Chains

Designed for compact, high-speed and low-noise power transmission, with chain width, guide arrangement and sprocket geometry reviewed as one drive system. Available for replacement, OEM and application-specific projects.

High-speed driveLow-noise transmissionChain-sprocket matching
Start Silent Chain ReviewCompare Product Families

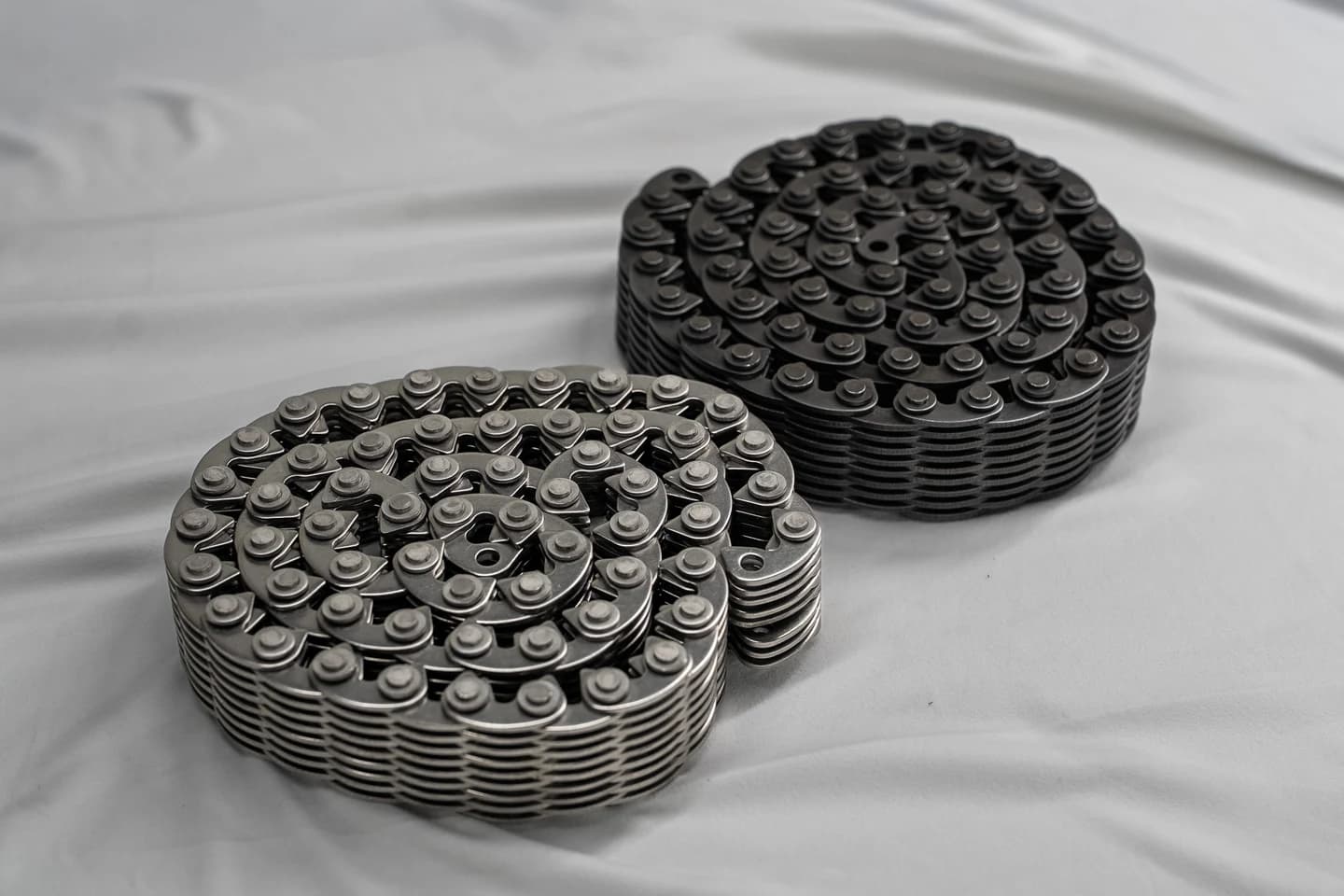

Two coiled silent-chain assemblies arranged on a light work surface
Silent Chains comparison

Product overview

What are Silent Chains?

Silent chains use toothed plates that engage with a matching sprocket. Selection depends on the chain geometry, guide arrangement, speed, load, lubrication, and the condition of the complete drive system.

01

Smooth engagement

Toothed engagement supports stable power transfer in precision drive systems.

02

System matching

Chain and sprocket geometry should be reviewed together for replacement work.

03

Compact drive design

Used where a compact transmission layout and controlled operation are important.

Product evidence

View Silent Chains in detail.

These workshop photographs show visible product forms and system interfaces. Exact model, dimensions, material, and application suitability are confirmed from the available drawing, sample, and operating data during engineering review.

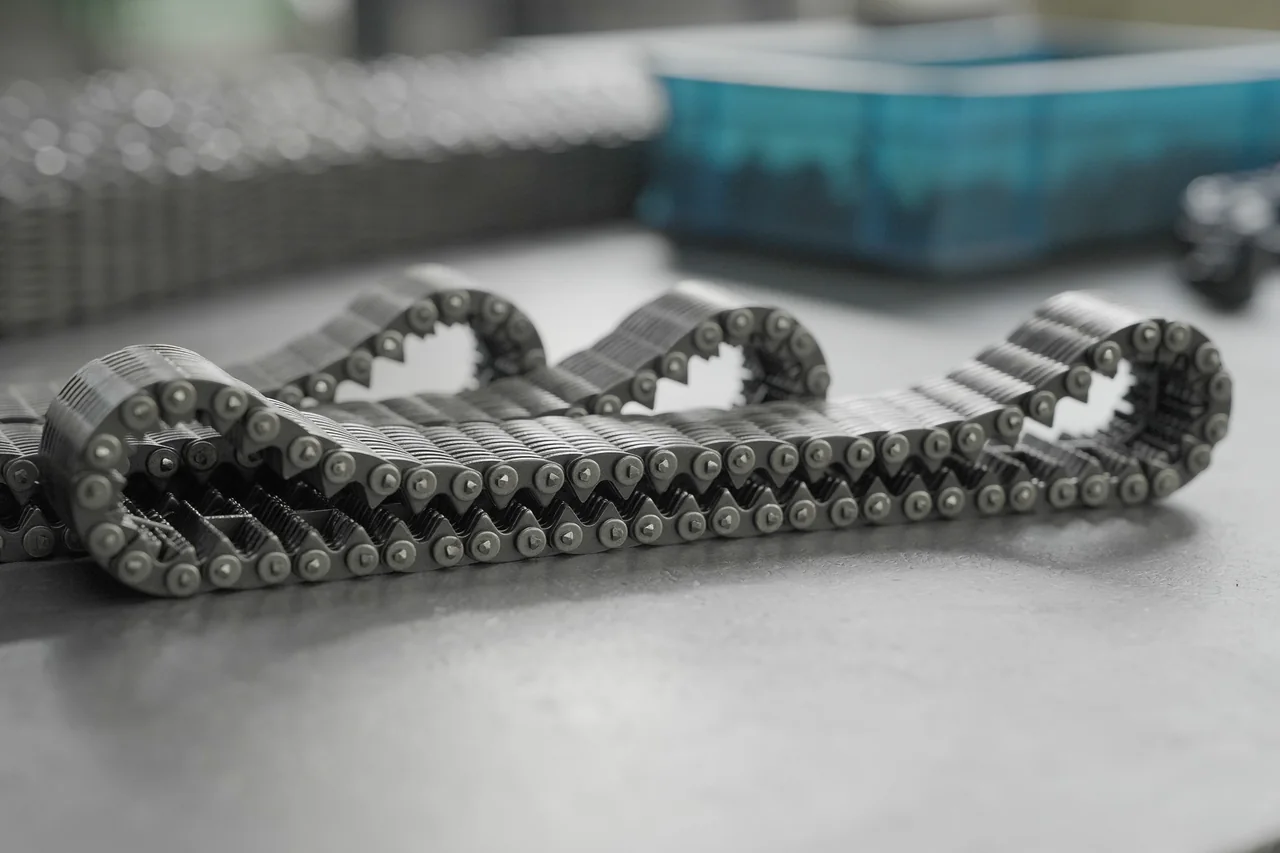

Finished silent chain arranged in a curved profile on a workshop surface

Formed silent-chain assembly

A finished chain arranged to show the toothed-link profile and overall flexibility.

Application review

Review the drive, chain and sprocket as one system

Machine type alone is not enough. Speed, load, layout, lubrication, sprocket condition, and replacement evidence should be reviewed together.

01

Drive requirement

Review speed, transmitted load, duty cycle, layout, lubrication and operating environment.

02

Chain identification

Identify pitch, chain width, guide arrangement, link count, markings, drawing or physical sample.

03

Sprocket compatibility

Review tooth count, tooth geometry, bore details, wear condition and chain-sprocket matching.

Technical inputs

Prepare a reviewable specification.

Send the information currently available. JXChain will identify any missing dimensions, operating data or compatibility inputs during engineering review.

Chain identification

Model, markings, drawing, photos, or physical sample

Core dimensions

Pitch, chain width, link count, and guide arrangement

Sprocket data

Tooth count, bore, center distance, and available drawing

Operating conditions

Speed, load, duty cycle, lubrication, and environment

Industrial context

Start with the machine. Confirm the complete drive conditions

Application names help route the inquiry, but dimensions and system conditions determine the technical review.

Industries

  • Automotive engine systems
  • CNC machine tools
  • Food processing equipment
  • Printing and paper machinery

Typical machines

  • Engine timing systems
  • Oil pumps and auxiliary drives
  • Automated conveyor systems
  • Printing press drive systems

Common applications

  • Automotive systems
  • CNC machine tools
  • High-speed packaging
  • Printing machinery

RFQ intake

Ready to start a Silent Chain review?

Send the technical information currently available. We will identify missing inputs, review chain–sprocket compatibility and confirm the technical scope required for quotation.

Pitch / width / guideSprocket dataSpeed / load / lubricationDrawing / photos / sample
Start Silent Chain ReviewEmail Technical Details
