01
Mechanical variation
The transmission ratio changes through the mechanical variator system.
Product family
P.I.V. / Variable Speed Chains
Mechanical variable-speed chains for P.I.V. variators and legacy transmission systems, with the existing chain model, machine reference, chain width, link structure and sample evidence reviewed together. Available for replacement, repeat supply and machine-specific identification.
Mechanical speed variationVariator compatibilityModel / sample identification
P.I.V. variable-speed chain - physical product view
Product overview
Mechanical speed variation through a matched variator system.
P.I.V. chains operate inside mechanical variable-speed transmission systems. Correct replacement depends on identifying the existing chain and variator, then checking dimensions, link structure, machine context, and operating requirements.
02
Machine-specific review
Machine brand, variator model, markings, and samples can be decisive.
03
Replacement support
Photos and a physical sample can start review when a drawing is unavailable.
Product evidence
View P.I.V. / Variable Speed Chains in detail.
These workshop photographs show visible product forms and system interfaces. Exact model, dimensions, material, and application suitability are confirmed from the available drawing, sample, and operating data during engineering review.

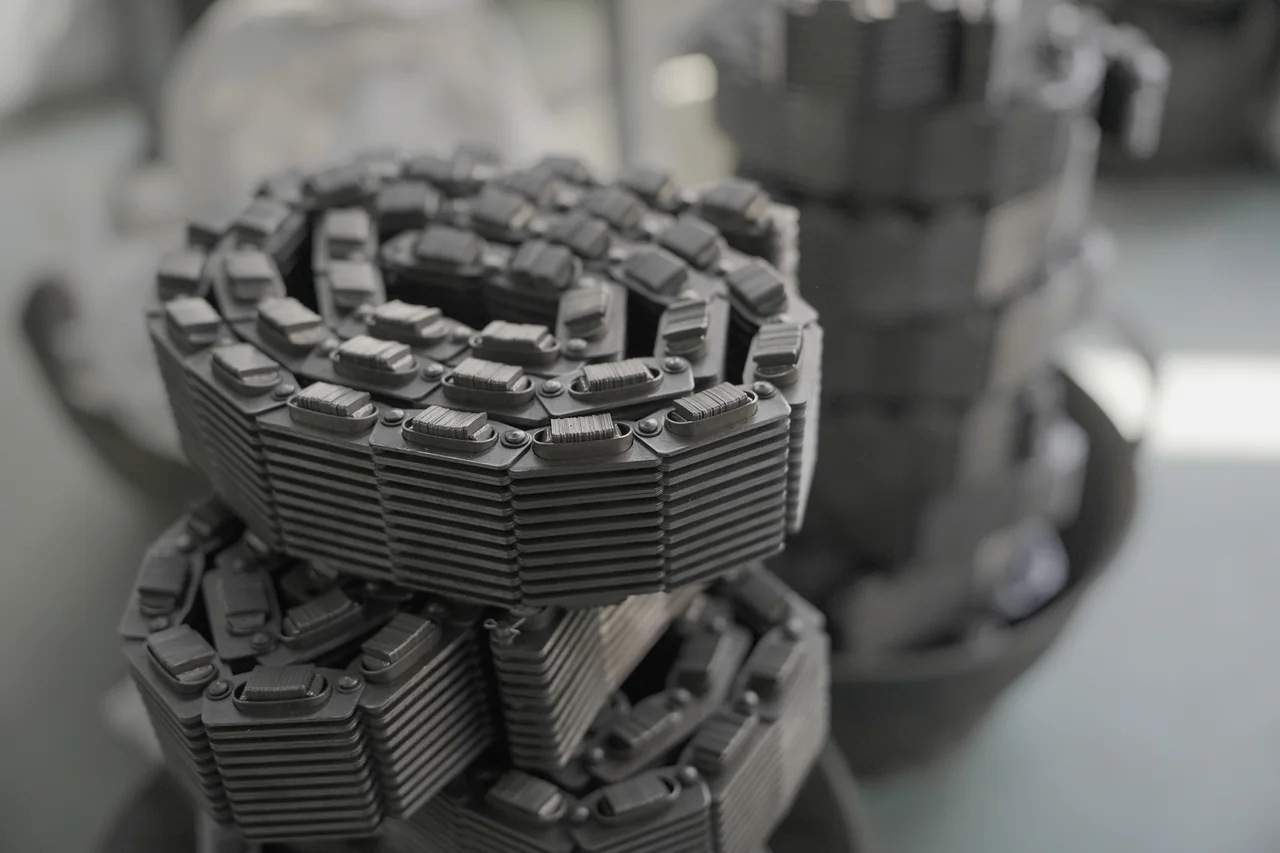

Stacked variable-speed chain assemblies
Several P.I.V. chain assemblies arranged to show the layered plate construction.
How the system works
The chain and variator operate as one matched system
This conceptual sequence explains the system role without assuming a specific variator architecture. Machine model and sample identification remain essential.
01
Input speed
Power enters the mechanical variable-speed transmission.
02
Variator mechanism
The P.I.V. chain operates within the mechanically adjusted system.
03
Ratio adjustment
Mechanical movement changes the transmission ratio.
04
Output speed
The machine receives an adjustable mechanical output speed.
Not an electronic VFD or servo-control system.
Technical inputs
Prepare a reviewable P.I.V. chain specification.
Send the information currently available. JXChain will identify any missing dimensions, operating data or compatibility inputs during engineering review.
Existing chain
Model, markings, width, link structure, photos, or physical sample
Machine / variator
Brand, model, nameplate, installation photos, and available manual
Operating requirement
Speed range, load, duty cycle, and current failure symptoms
Commercial need
Quantity, urgency, delivery target, and future batch requirement
Industrial context
Identify the machine and variator. Then confirm the replacement conditions.
Application names help route the inquiry, but dimensions and system conditions determine the technical review.
Industries
- Textile machinery
- Printing machinery
- Packaging equipment
- Legacy machine maintenance
Typical machines
- Spinning and winding machines
- Weaving looms
- Printing press feeding systems
- Paper converting machines
Common applications
- Textile machinery
- Printing machinery
- Packaging equipment
- Retrofit maintenance
RFQ intake
Ready to start a P.I.V. chain review?
Send the information currently available. We will identify missing dimensions, review the chain and variator compatibility, and confirm the technical scope required for quotation.
Photos / drawing / sampleMachine / variator modelWidth / structure / markingsQuantity / required timing
