01
Chain identification
- Product family
- Pitch and width
- Plate and link structure
- Length or link count
- Guide or attachment features
Engineering review
Chain Manufacturing Feasibility Review
Evaluate whether an existing, obsolete or custom chain can be reproduced reliably from a drawing, physical sample or machine application. Feasibility is confirmed before tooling, production planning and final quotation.
Urgent replacementDrawing reviewPhysical sampleOEM / batch supply

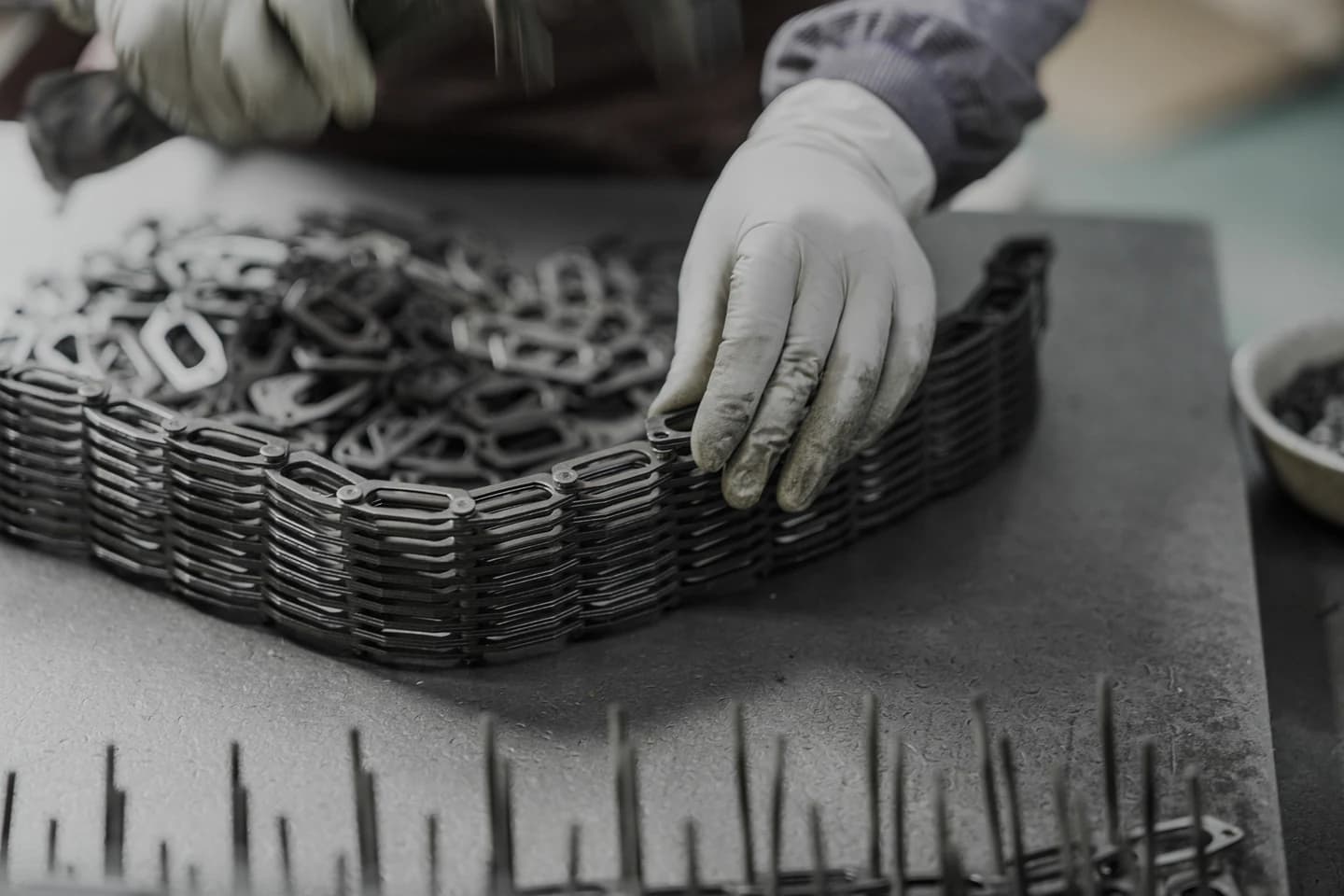

Chain assembly prepared on a workshop table
When to use this review
Start with what you know, not a complete specification.
These are the most common conditions that should enter this engineering path.
01
A machine is down and the replacement chain is difficult to identify.
02
The existing chain model is known but obsolete or difficult to source.
03
A physical sample exists, but no reliable drawing is available.
04
A drawing needs manufacturability and missing-data review.
05
The machine application is known, but the exact chain is not.
06
An OEM project needs a sample route before repeat production.
Evidence routes
Start with the evidence you already have.
Use the strongest evidence available. Engineering can identify what is missing before a quotation is prepared.
01
Existing model
Start from a known manufacturer, model, or visible marking.
- Model reference
- Markings and photos
- Quantity and urgency
02
Technical drawing
Start from documented geometry and process requirements.
- Drawing and critical dimensions
- Material or treatment notes
- Tolerance requirements
03
Physical sample
Start from the component in service when documentation is unavailable.
- Sample photos
- Wear or damage notes
- Machine and mating-part context
04
Machine application
Start from what the chain must do inside the machine.
- Machine brand and model
- Speed, load, and duty
- Environment and installation limits
Engineering review
What the engineering review evaluates
The review separates known facts from assumptions so the feasibility response and quotation scope remain clear.
02
Operating requirement
- Speed and load
- Continuous or cyclic duty
- Temperature and contamination
- Wear condition
- Lubrication
03
Manufacturing requirement
- Drawing completeness
- Sample condition
- Required dimensions
- Quantity and urgency
- Sample or approval route

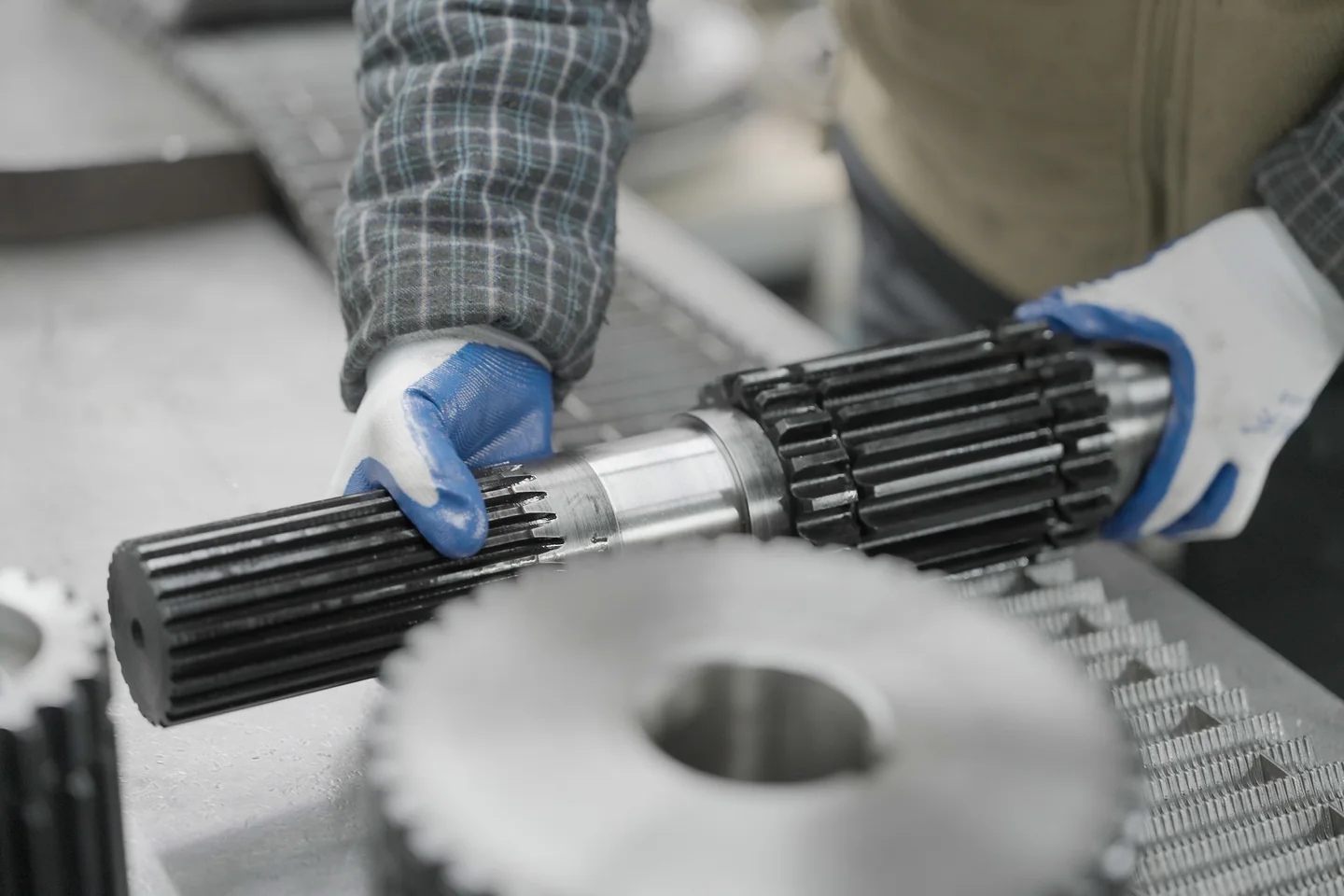

Chain and mating components prepared for review
Review output
What you receive before quotation
The initial review does not promise production. It makes the next decision, remaining uncertainty, and quotation boundary visible.
01
Initial feasibility response
02
List of missing information
03
Confirmation of whether a physical sample is required
04
Recommended sample or direct-quotation route
05
Documented assumptions and quotation scope
06
Classification as replacement, prototype, OEM, or batch supply
Start your review
Start a feasibility review
Submit the information currently available. Feasibility is confirmed before tooling, production planning and final quotation.
Drawing / photos / sampleMachine and applicationOperating conditionsQuantity and urgency
