01
Objective and boundary
- Problem to solve
- Component and system boundary
- Standard product gap
- Expected quantity
Engineering review
Custom Chain & Sprocket Engineering Review
Review non-standard chain and sprocket requirements from drawings, physical samples or machine constraints, then define the manufacturable scope and next validation step.
Design collaborationSample replicationNon-standard geometryScope definition

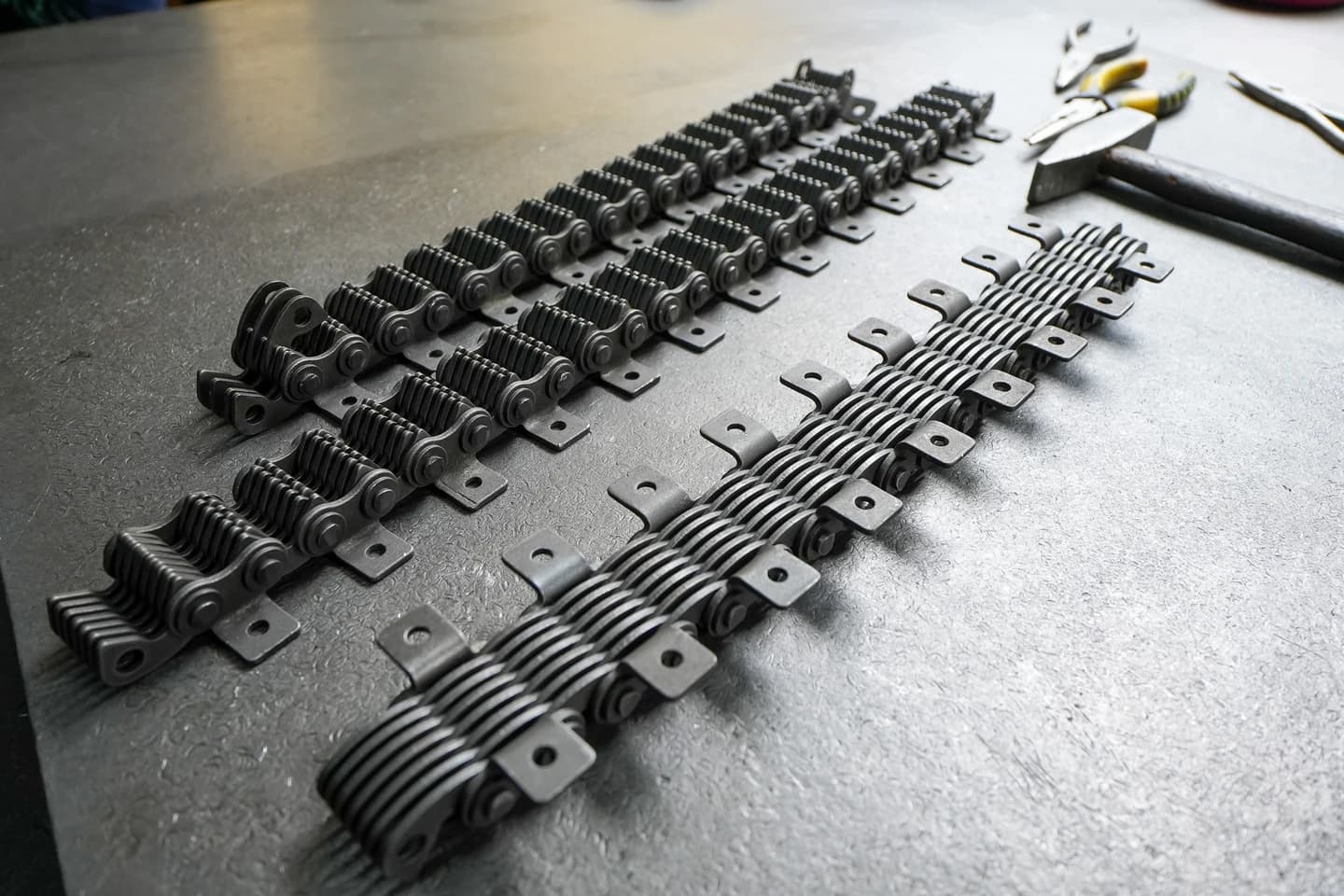

Non-standard chain samples arranged for comparison
When to use this review
Start with the constraint, not a complete specification
These are the most common conditions that should enter this engineering path.
01
A standard chain or sprocket does not fit the installation.
02
A special attachment, structure, or mounting arrangement is required.
03
The original component is obsolete and only a worn sample remains.
04
An existing design needs modification rather than direct replication.
05
Chain and sprocket must be evaluated as one system.
06
An OEM project is still at the requirement-definition stage.
Evidence routes
Start from a defined requirement or a physical sample
Custom work starts by separating design collaboration from sample replication. Not every sample belongs in this path.
01
Design collaboration
Use when drawings, specifications, or machine layout define the starting point.
- Drawing or technical specification
- Project objective and constraints
- Operating conditions
- Prototype and batch expectations
02
Sample replication
Use when the physical component is the primary source of geometry.
- Sample and detail photos
- Basic measurements
- Wear or failure description
- Mating parts and machine context
Route an identified sample to the specialist path
A clearly identified chain replacement belongs in Chain Manufacturing. A clearly identified sprocket or chain-sprocket matching request belongs in Sprocket Production. Use Custom Solutions when identity, geometry, modification, or system constraints remain unresolved.
Engineering review
How we define a manufacturable custom scope
Engineering defines the project boundary, records uncertainty, and selects the next validation step before making a manufacturing commitment.
02
Geometry and operation
- Critical dimensions
- Installation space
- Layout and mating parts
- Speed, load, duty, and environment
03
Validation route
- Recoverable sample dimensions
- Missing data
- Prototype or sample need
- Customer confirmation points

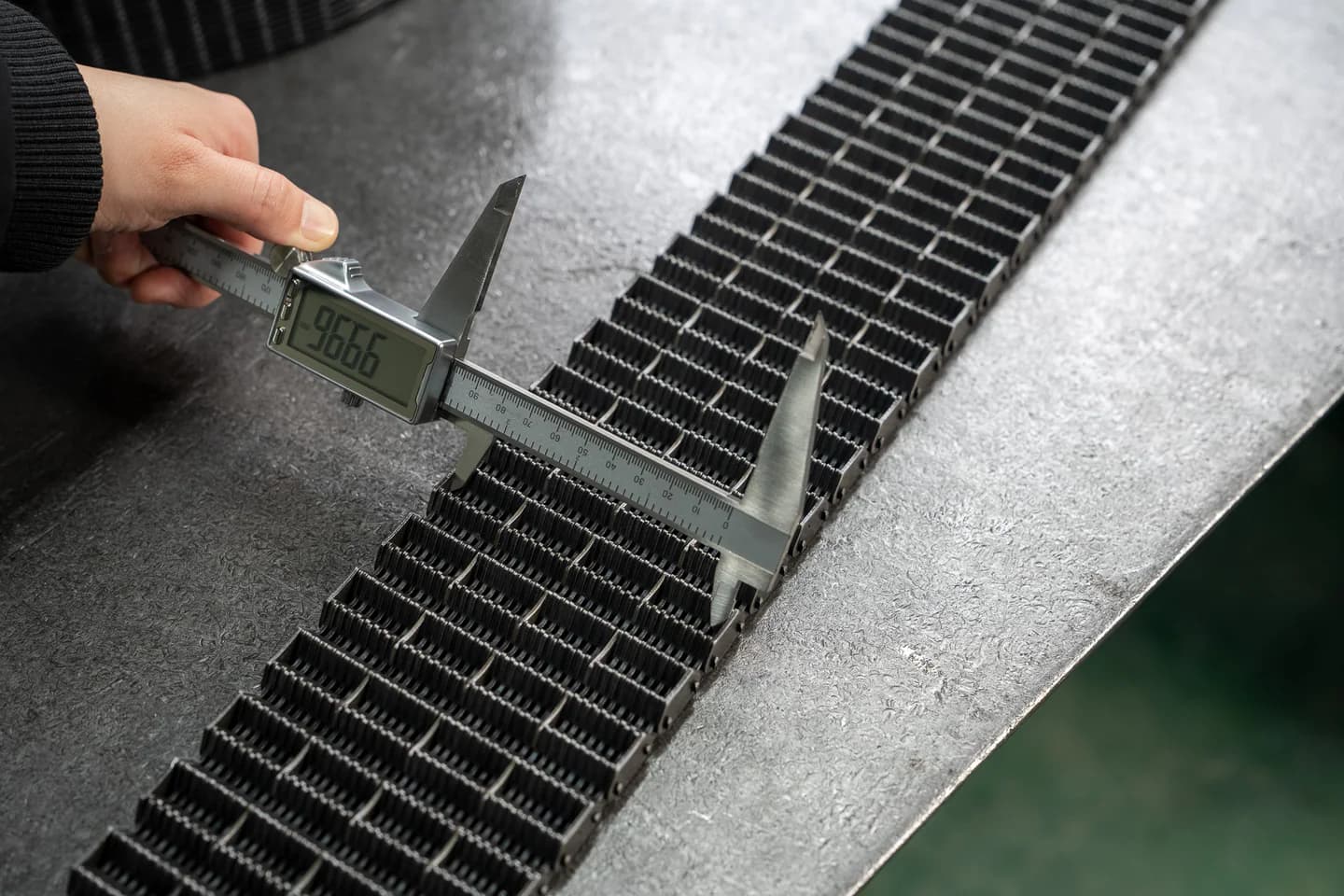

Physical chain sample measured with a digital calliper
Review output
What the custom review clarifies before quotation
The initial review does not promise production. It makes the next decision, remaining uncertainty, and quotation boundary visible.
01
Clarified project objective
02
Design-collaboration or sample-replication route
03
List of missing information
04
Documented constraints and assumptions
05
Recommended prototype or validation step
06
Defined scope for quotation and unresolved points
Start your review
Start your custom engineering review
Submit the information currently available. Our engineering team will define the project route, identify any missing details, and confirm the appropriate feasibility, validation and quotation scope.
Drawing, sketch or physical sampleProject objective and required functionMachine interfaces and constraintsQuantity, urgency and target timeline
